Description

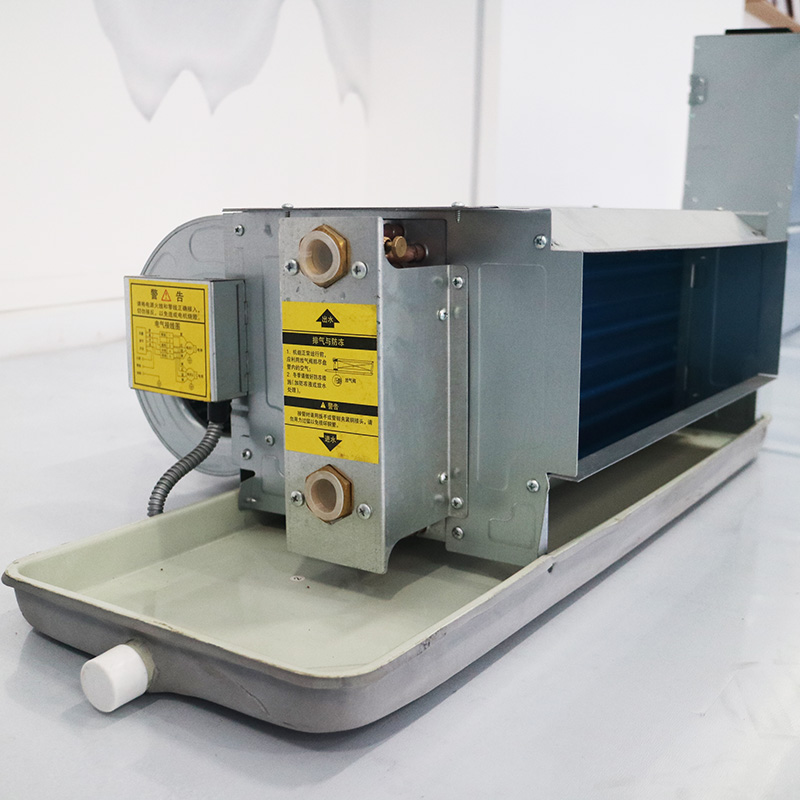

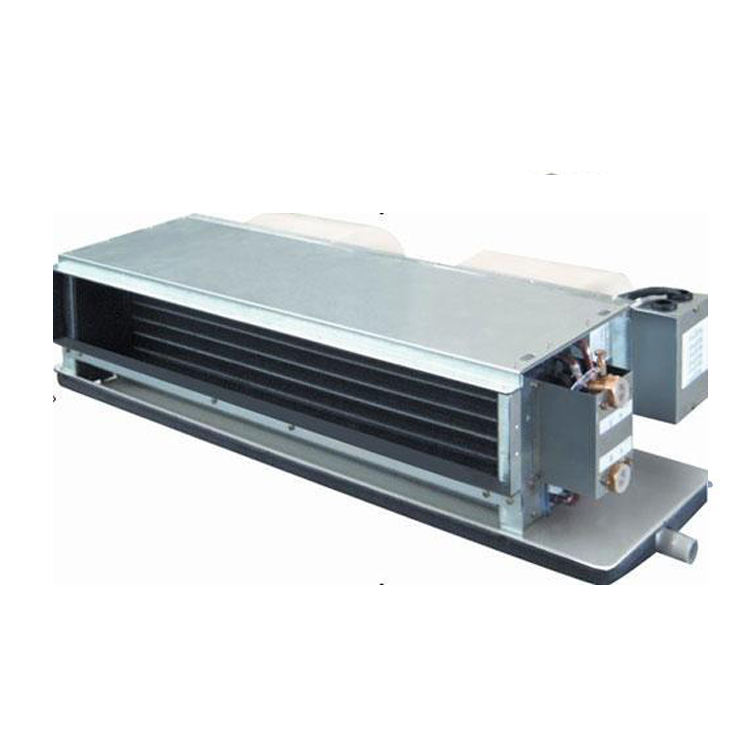

The water chilled fan coil unit is a compact HVAC (heating, ventilation, and air conditioning) system designed to provide efficient heating and cooling for indoor spaces. Installed next to walls, or ceilling, these units offer a space-saving solution while delivering reliable performance.
With a sleek design and versatile installation options, they seamlessly integrate into various indoor settings, such as offices, hotels, residences, and commercial spaces. The units typically feature easy disassembly for maintenance, ensuring convenient upkeep. Their side air outlet form enhances airflow distribution, promoting optimal comfort throughout the room. This type of fan coil unit is well-suited for meeting rooms, halls, and similar environments where efficient temperature control is essential.
Fan Coil Specification
Performance type | FP-34 | FP-51 | FP-68 | FP-85 | FP-102 | FP-136 | FP-170 | FP-204 | ||
Rated Air flow | H | 340 | 510 | 680 | 850 | 1020 | 1360 | 1700 | 2040 | |
M | 260 | 390 | 510 | 640 | 770 | 1020 | 1280 | 1530 | ||
L | 170 | 260 | 340 | 430 | 510 | 680 | 850 | 1020 | ||
Rated cooling capacity | W | H | 1920 | 2810 | 3720 | 4660 | 5558 | 7282 | 9093 | 10980 |
Kcal/h | H | 1680 | 2420 | 3300 | 4020 | 4860 | 6250 | 7980 | 9421 | |
Rated
Heating capacity |
W | H | 3135 | 4550 | 5982 | 7360 | 8720 | 11381 | 14218 | 16750 |
Kcal/h | H | 2555 | 3724 | 4902 | 6042 | 7134 | 9376 | 11704 | 13813 | |
Output Power(w) | 12pa | H | 37 | 52 | 62 | 76 | 96 | 134 | 152 | 189 |
30pa | H | 44 | 59 | 72 | 87 | 108 | 156 | 174 | 212 | |
50pa | H | 49 | 66 | 84 | 100 | 118 | 174 | 210 | 250 | |
dB(A)
Noise |
12Pa | H | 37 | 39 | 41 | 43 | 45 | 46 | 48 | 50 |
30Pa | H | 40 | 42 | 44 | 46 | 47 | 48 | 50 | 52 | |
50Pa | H | 42 | 44 | 46 | 47 | 49 | 50 | 52 | 54 | |
Water Volume(kg/h) | 319 | 478 | 638 | 797 | 956 | 1275 | 1594 | 1913 | ||
Water pressure loss(kpa) | ≤30 | ≤30 | ≤30 | ≤30 | ≤40 | ≤40 | ≤40 | ≤40 | ||
Gross Weight(kg) | WA
With return box WM LM KM |
12 | 15 | 16 | 18 | 19 | 25 | 29 | 33 | |
14 | 17 | 19 | 21 | 23 | 30 | 34 | 38 | |||
24 | 28 | 30 | 33 | 36 | 47 | 58 | 61 | |||
27 | 32 | 33.5 | 36.5 | 39.5 | 50.5 | 62 | 65 | |||
/ | 22 | 31 | 35 | |||||||
Inlet and Outlet pipe | 3/4” Iinternal Thread | |||||||||
Condensate pipe | 3/4” External Thread | |||||||||
KM serious condensate pipe | / | 25mm | 32mm | |||||||

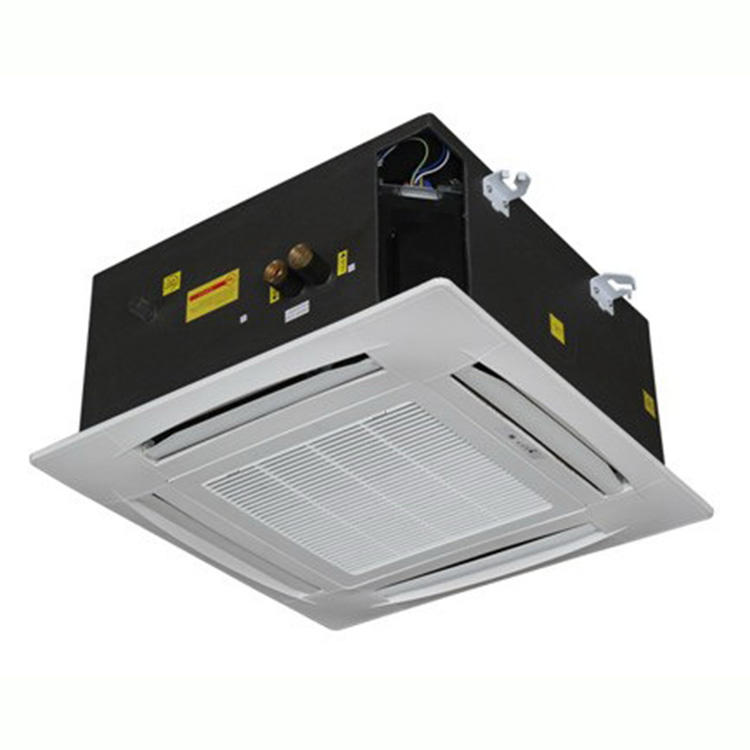

KM serious panel size | / | 650*650 | 950*950 | |||||||
Maximum Allowable Working pressure | 1.2Mpa | |||||||||
Power | AC220V/50HZ |
Features of water chilled fan coil unit
- Efficient Heating and Cooling: These units provide efficient heating and cooling to maintain comfortable indoor temperatures year-round. They feature a combination of a fan and a coil to effectively circulate air and regulate temperature.
- Compact Design: Wall-mounted fan coil units are designed to be space-saving, making them ideal for areas where floor space is limited. Their compact size allows for easy installation on walls, maximizing usable space in the room.
- Versatile Installation Options: Wall-mounted fan coil units offer versatile installation options, allowing them to be mounted at various heights on the wall. This flexibility enables them to blend seamlessly into different room layouts and designs.
- Ease of Maintenance: Many wall-mounted fan coil units are designed for easy maintenance, with accessible components that can be quickly disassembled and cleaned. This ensures smooth operation and prolongs the lifespan of the unit.
- Enhanced Airflow Distribution: With their side air outlet form, wall-mounted fan coil units promote optimal airflow distribution throughout the room. This helps maintain consistent temperatures and improve overall comfort levels.
- Suitable for Various Environments: These units are suitable for a wide range of indoor environments, including offices, hotels, residences, and commercial spaces. They provide reliable heating and cooling solutions tailored to the specific needs of each space.
Aike Group Company Introduction
Shandong Aike Holding Group, a leading manufacturer dedicated to providing high-quality ventilation air conditioner solutions worldwide. With a strong commitment to excellence, Shandong Aike Group specializes in the production of innovative and reliable industry water air conditioner, including wall mounted fan coil unit, horizontal air conditioner, vertical air conditioner and so on.
FAQ
1.Are you factory or trade company?
Yes, we are manufacturer.
2.What’s the guarantee, in case the water tank breaks down?
The water tank has one year s guarantee. If it breaks down, generally speaking, our technician will figure out what the problem
may be, according to clients feedback.Parts will be replaced for free if the problems are caused by quality fault.
3.How about the documents after shipment?
After shipment, we will send all original documents to you by DHL, including Packing List, Commercial Invoice, B/L, and other
certificates as required .
4.How long is the delivery time?
For standard FCU less than 100 pcs, it would be 7-15 days; For more FCU and customized FCU according to
client s specific requirements, it would be 15 to 30 days.
5.How’s the payment?
Telegraphic Transfer(T/T). L/C at sight .
6.Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange
shipment by themselves or their agents.
7.How is the packing?
Solid Seaworthy plywood Box Package with Steel Belt Save space as much as possible for container loading.
