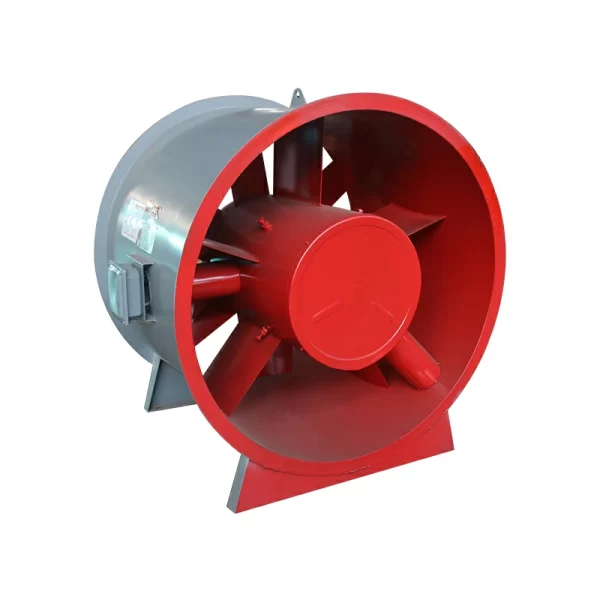

Used Different Blade Shapes And Wheel Hub Ratio And Impeller Speed Mixed Flow Fan

Used Different Blade Shapes And Wheel Hub Ratio And Impeller Speed Mixed Flow Fan

Name: Mixed flow fan Material:  stainless steel  FRP Aluminum Application:Mixed flow fan Email: sales@aikegroupco.com Whatsapp: +86-18653123650

Description

Mixed flow  fan

Mixed flow fan adopts mixed-flow impellers with superior performance, cylindrical shells and linear connections. In order to meet the needs of different occasions, different blade shapes and impeller speeds are used, so that the fans of the same specification have three performance parameters, namely type A (low pressure type), type B (medium pressure type) and type C (high pressure type). Both two-speed and silencer types available.

Specification

No. Rotational speed

(r/min)

Operating mode



Volum

(m³/h)

Total pressure

(Pa)

Power

(Kw)

Exit noise

dB(A)

dB(A) Weight

(KG)

4A 1450 1 3945 130.3 0.37 71 62 40
4B 1450 2 4260 212.2 0.55 75 66 55
4C 2900 3 6716 758.9 2.2 85 74 65
4.5A 1450 4 4252 261.0 0.55 72 64 50
4.5B 1450 5 4432 378.0 0.75 77 67 65
4.5C 2900 3 8684 858.2 3 87 75 80

Application

Civil building ventilation:Highly efficient and energy-saving, small in size and light in weight, easy to install and maintain. Frequency conversion speed regulation according to different requirements, explosion-proof environment to meet different working conditions.

Exhaust in metallurgical factories:Mixed flow fans have good aerodynamic performance, balanced operation and high efficiency. As a positive pressure blower in smoke-proof stairwells and front rooms, the necessary positive pressure can be maintained in the stairwells.

Ventilation mines:Mixed flow fans are widely used in ventilation and high temperature smoke exhaust for fire fighting in tunnels, underground garages, high-grade civil buildings, metallurgy, factories and mines, etc.

mixed flow fanmixed flow fan

Performance characteristics

The fan mainly consists of impeller, casing, inlet collector, guide vane, motor and other parts. The impeller is welded on the hub with a twisted plate with meridian acceleration characteristics. After dynamic balance verification and overspeed test, it has good aerodynamic performance. The casing is round and connected to the air collector with silencer function as a whole. The outlet is equipped with a guide vane, which has good airflow distribution and stable pressure.
