Product Description

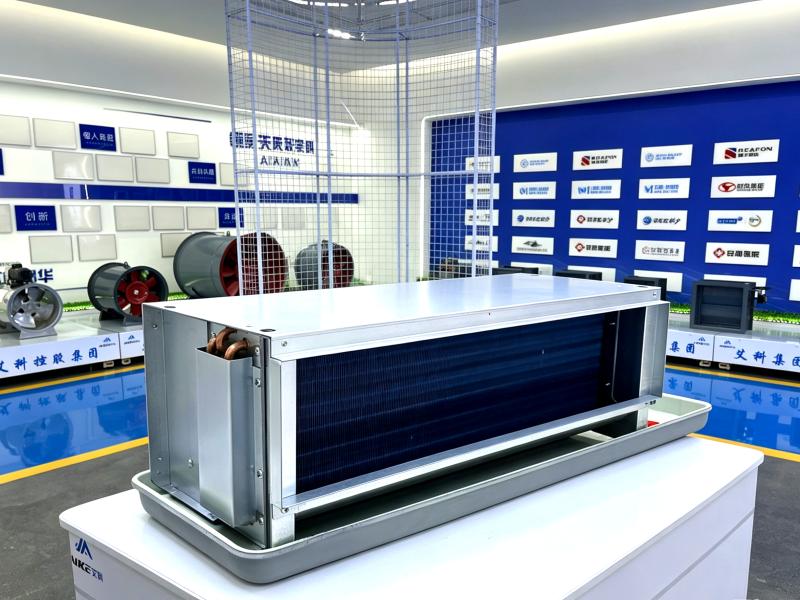

A horizontal concealed fan coil unit (FCU) is a compact HVAC terminal designed to provide efficient cooling and heating while remaining hidden above a ceiling or inside a concealed installation space.
With a horizontal configuration, the unit can be integrated into ceiling voids and connected to air distribution systems, helping architects and HVAC contractors maintain a clean interior appearance without compromising indoor comfort.
Aike provides horizontal concealed fan coil unit solutions for hotels, offices, apartments, villas, commercial buildings and other HVAC projects worldwide.
Key Features of Horizontal Concealed Fan Coil Units
1. Concealed Installation for a Clean Interior
One of the main advantages of a horizontal concealed fan coil unit is its hidden installation.
The unit can be installed above a suspended ceiling, while only the air grille or diffuser is visible inside the room.
This design helps:
- Maintain a clean ceiling appearance
- Save visible indoor space
- Integrate HVAC with interior decoration
- Provide greater flexibility for architectural design
It is particularly suitable for hotels, offices and high-end residential projects where appearance is an important consideration.
2. Efficient Cooling and Heating
The fan coil unit is designed to transfer heat efficiently between the water circuit and indoor air.
Depending on the HVAC system design, the unit can provide both cooling and heating functions.
Typical benefits include:
- Fast indoor temperature adjustment
- Stable cooling performance
- Efficient heat transfer
- Comfortable air distribution
- Flexible operation for different seasons
For chilled water HVAC systems, the concealed FCU can work as an indoor terminal connected to a central chiller or heat pump system.
3. Horizontal Configuration for Flexible Installation
The horizontal structure allows the unit to fit into ceiling spaces where vertical or wall-mounted equipment may not be suitable.
This makes the product particularly useful when:
- Ceiling installation is preferred
- Floor space is limited
- Wall-mounted equipment is not suitable
- A concealed HVAC design is required
The compact configuration also gives HVAC contractors more flexibility when planning equipment locations and service access.
4. Low Noise for Comfortable Indoor Spaces
Noise is an important consideration for indoor HVAC equipment, especially in hotels, bedrooms, offices and other quiet environments.
Aike horizontal concealed fan coil units are designed with attention to fan operation, airflow and overall equipment structure to support comfortable indoor acoustic conditions.
The concealed installation also helps integrate the unit into the building without creating a prominent indoor equipment presence.
5. Easy Maintenance and Service
Although the main unit is concealed, proper maintenance access can be incorporated into the ceiling design.
Routine service may include:
- Air filter cleaning
- Coil inspection
- Fan and motor inspection
- Drain pan maintenance
- Electrical component inspection
For project planning, sufficient service clearance should be reserved around the FCU to make future inspection and maintenance more convenient.
Horizontal Concealed FCU for Chilled Water HVAC Systems
Horizontal concealed fan coil units are commonly used as terminal units in chilled water air conditioning systems.
A typical HVAC configuration may include:
Chiller / Heat Pump → Water Piping → Fan Coil Unit → Conditioned Indoor Air
The central system supplies chilled or heated water to the fan coil coil. The FCU then transfers the thermal energy to the indoor air through the heat exchanger.
This configuration allows different rooms or zones to be conditioned according to individual project requirements.
Applications of Horizontal Concealed Fan Coil Units
Hotel HVAC Systems
Concealed FCUs are widely suited to hotel guest rooms and common areas where a quiet, clean and discreet HVAC installation is required.
The concealed design allows the indoor space to maintain a more refined appearance while providing independent temperature control.
Residential Buildings
For apartments, villas and other residential projects, horizontal concealed fan coil units can be integrated into suspended ceilings or service spaces.
This allows HVAC equipment to remain hidden while maintaining comfortable indoor temperatures.
Office Buildings
Offices often require flexible zoning and unobtrusive HVAC equipment.
Concealed fan coil units can be integrated into ceiling systems and connected to different air outlets according to room layouts.
Commercial Buildings
Retail stores, restaurants and other commercial spaces can use horizontal concealed FCUs where floor and wall space is limited and a concealed HVAC installation is preferred.
Why Choose Aike Horizontal Concealed Fan Coil Unit?
Professional HVAC Manufacturing
Aike focuses on HVAC equipment and provides a range of air conditioning and ventilation products, including:
- Fan Coil Units
- Air Handling Units
- Fresh Air Units
- Heat Pump Systems
- Air Conditioning Units
- Ventilation Equipment
Our experience in HVAC equipment manufacturing enables us to provide solutions for different building and engineering requirements.
Suitable for OEM and Project Supply
For international HVAC distributors and project contractors, product consistency and supply capability are important.
Aike supports:
- OEM requirements
- Project-based orders
- Customized configurations
- Technical communication
- Factory direct supply
Our engineering team can work with customers to understand project requirements before product selection.
Looking for a Reliable Horizontal Concealed Fan Coil Unit Manufacturer?
Aike HVAC provides reliable horizontal concealed fan coil unit solutions for hotels, residential buildings, offices, commercial facilities, and HVAC projects worldwide.
Our engineering team can help you select the right concealed fan coil unit according to your cooling and heating requirements, installation conditions, and project specifications.
