wall mounted fan coil unit

Description

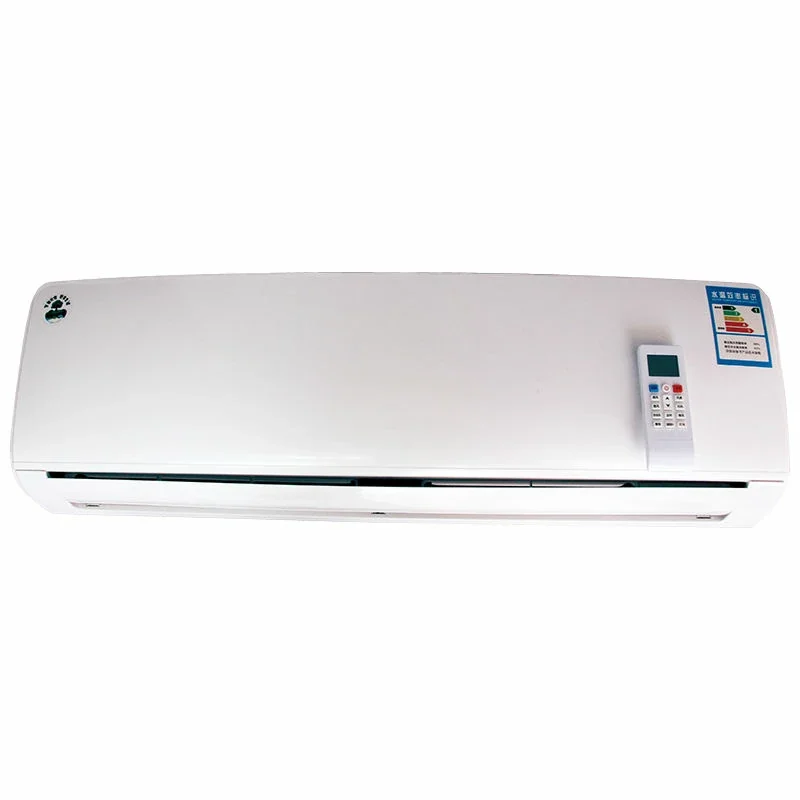

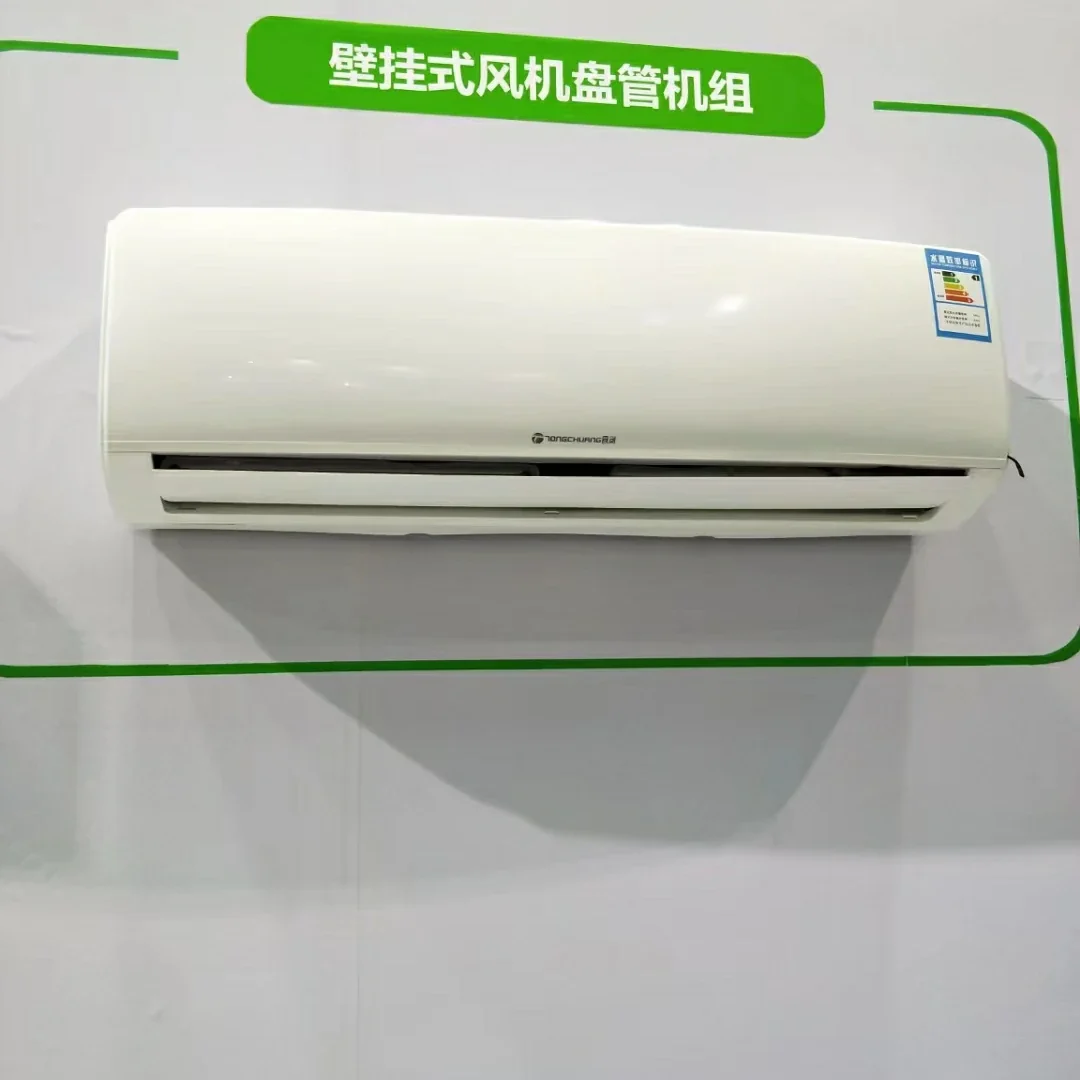

Wall mounted fan coil unit

Wall mounted fan coil unit is mainly composed of fan, heat exchanger (coil), condensate disc, shell and controller, which is suitable for centralized air conditioning system. Because the fan coil produced by our factory is improved after full market research and repeated experiments, it is advanced in design, complete in variety, superior in performance, and widely used. It is usually used in various hotels, apartments, restaurants, hospitals, commercial buildings, etc., which require low noise and flexible temperature regulation.

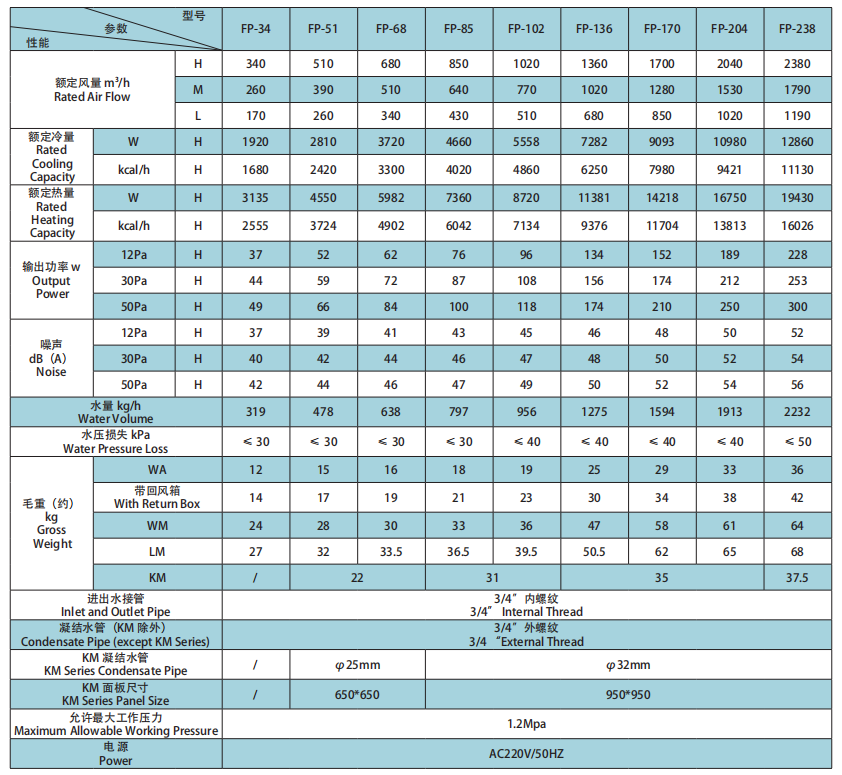

Specification

Performance Type			FP-34	FP-51	FP-68	FP-85	FP-102	FP-136	FP-170	FP-204
Rated Air flow		H	340	510	680	850	1020	1360	1700	2040
		M	260	390	510	640	770	1020	1280	1530
		L	170	260	340	430	510	680	850	1020
Rated cooling capacity	W	H	1920	2810	3720	4660	5558	7282	9093	10980
Rated cooling capacity	Kcal/h	H	1680	2420	3300	4020	4860	6250	7980	9421
Rated Heating capacity	W	H	3135	4550	5982	7360	8720	11381	14218	16750
Rated Heating capacity	Kcal/h	H	2555	3724	4902	6042	7134	9376	11704	13813
Output Power(w)	12pa	H	37	52	62	76	96	134	152	189
	30pa	H	44	59	72	87	108	156	174	212
	50pa	H	49	66	84	100	118	174	210	250
dB(A) Noise	12Pa	H	37	39	41	43	45	46	48	50
	30Pa	H	40	42	44	46	47	48	50	52
	50Pa	H	42	44	46	47	49	50	52	54
Water Volume(kg/h)			319	478	638	797	956	1275	1594	1913
Water pressure loss(kpa)			≤30	≤30	≤30	≤30	≤40	≤40	≤40	≤40
Gross Weight（kg）	WA With return box WM LM KM		12	15	16	18	19	25	29	33
			14	17	19	21	23	30	34	38
			24	28	30	33	36	47	58	61
			27	32	33.5	36.5	39.5	50.5	62	65
			/	22		31		35
Inlet and Outlet pipe			3/4” Iinternal Thread
Condensate pipe			3/4” External Thread
KM serious condensate pipe			/	25mm		32mm
KM serious panel size			/	650*650		950*950
Maximum Allowable Working pressure			1.2Mpa
Power			AC220V/50HZ

Feature

1.exquisite structure, beautiful appearance, reasonable product structure, selected sound insulation materials, fire insulation.
2.good design small size, small footprint, light weight, good strength, can be conveniently arranged anywhere.
3.high efficiency, coil adopts high-quality seamless copper tube and aluminum louver heat fin, the mechanical expansion tube to ensure the close contact between the fin and the copper tube, the best heat transfer effect.
4.the head loss is less, the head of the collection is made of brass forging, so that the water distribution is uniform and smooth, the water outlet is filled with knob exhaust valve, which can easily discharge the air in the machine.
5.power saving, low noise, long life.
6.Simple control and complete functions – wall-mounted units are controlled by microcomputer program.
7.Easy installation and maintenance
8.Simple control, complete functions

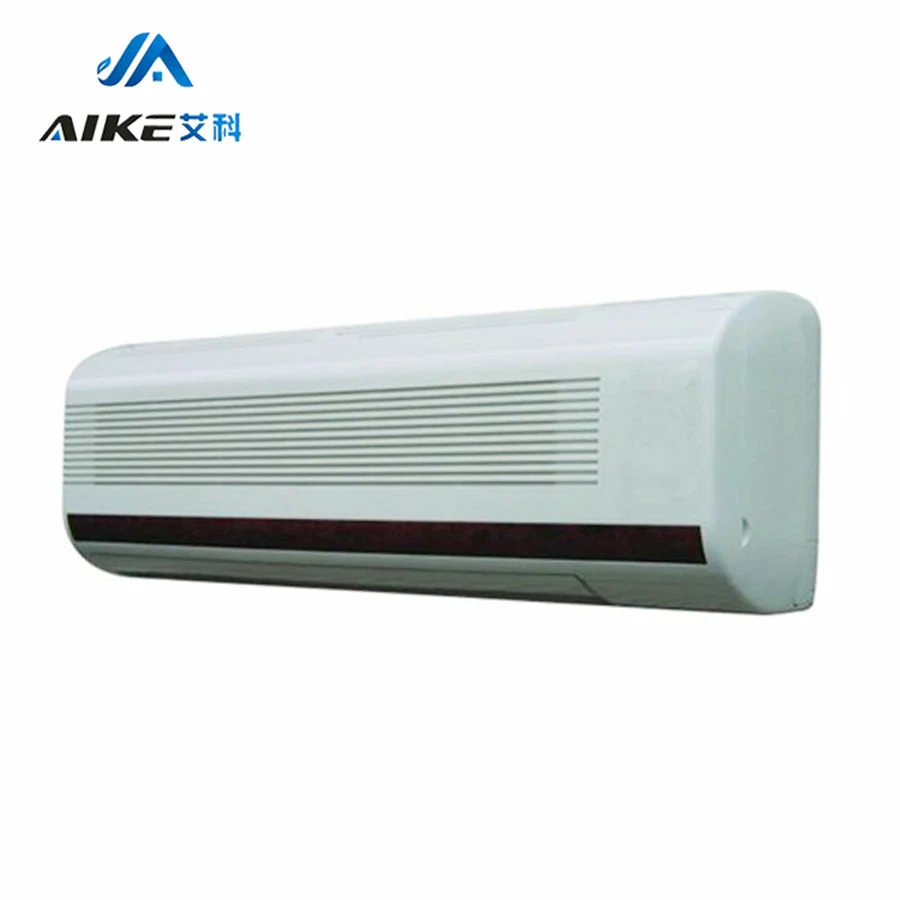

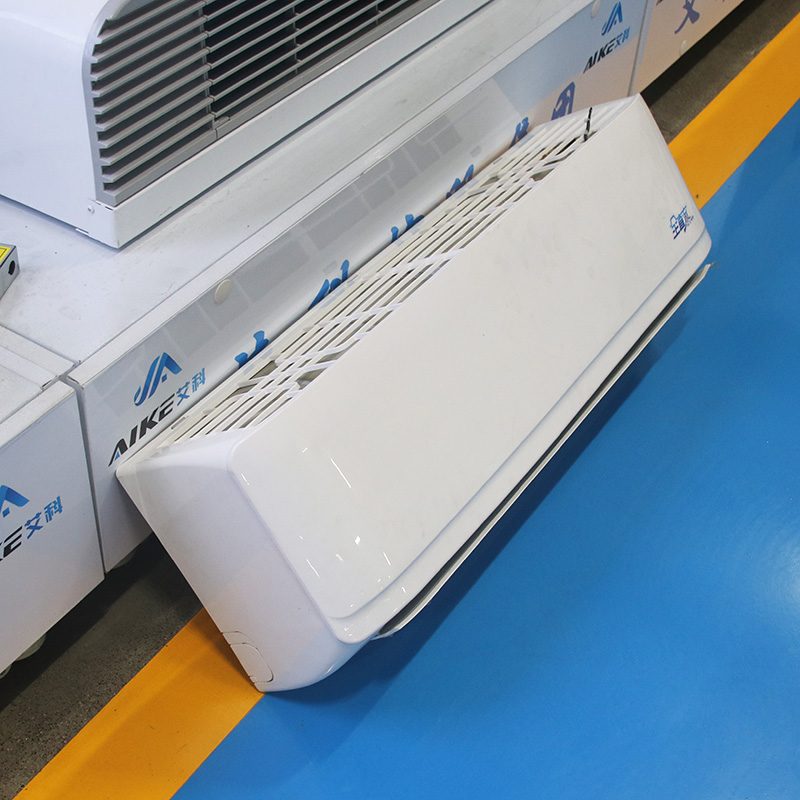

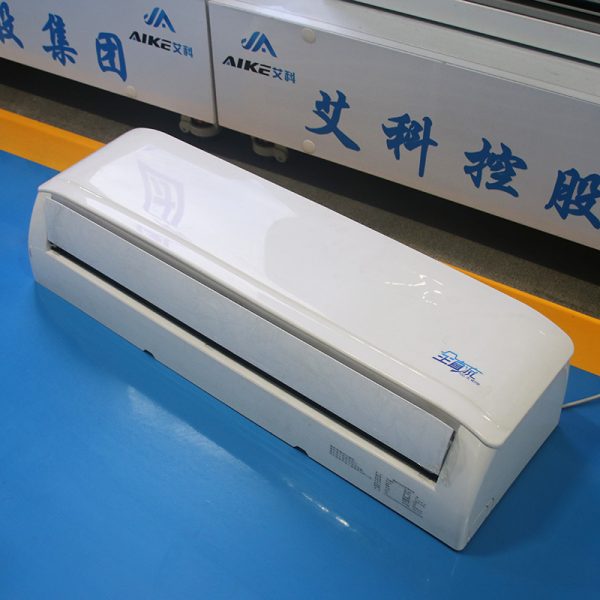

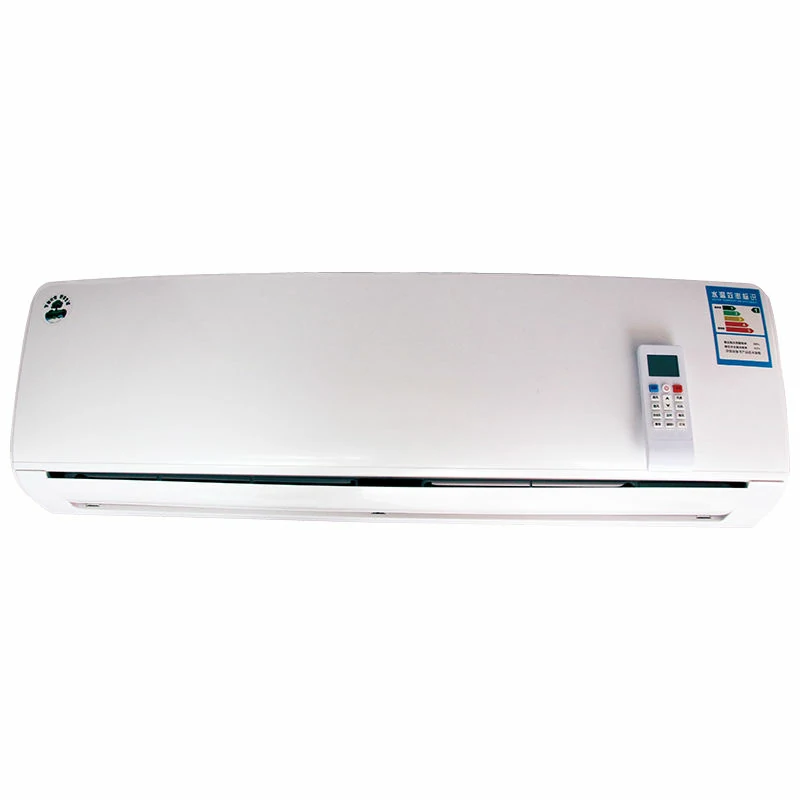

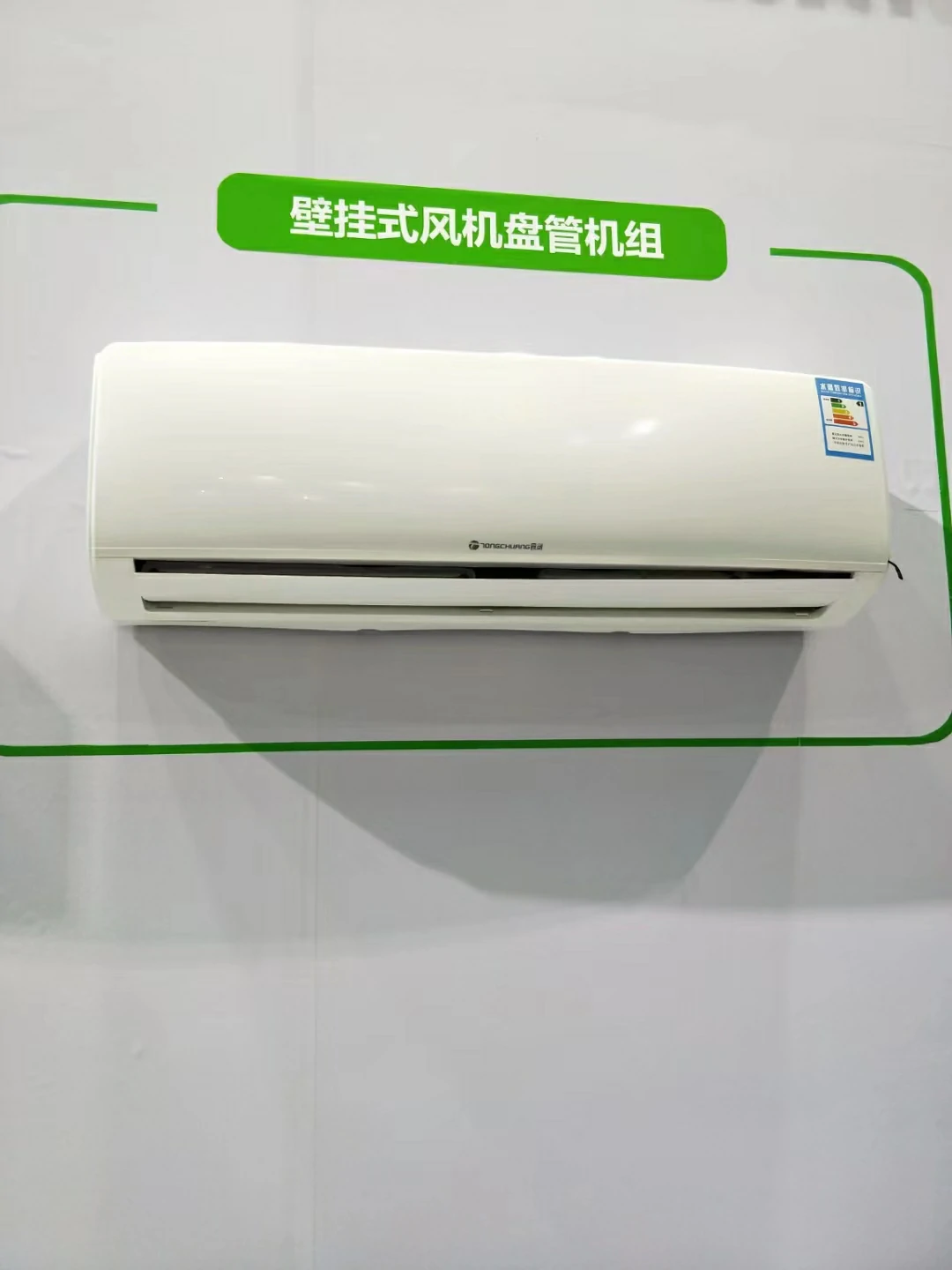

Product Picture

Company Profile

First of all, the company takes the “Belt and Road” initiative as its guide and implements its “green development” vision. Shandong Aike Group adheres to the business philosophy of “customer first, innovation-driven” and cultivates a corporate culture of “honesty and trustworthiness”.

Secondly, in recent years, its performance has continued to grow and its expansion has been steady. This trajectory has cemented lasting trust among clients and fostered lasting partnerships. In the current tide of economic development and fierce market competition, the company cherishes its hard-won honors. Shandong Aike Group unswervingly follows the road of industrialization and modernization, relies on the diligence and wisdom of “Aike” people, and unswervingly creates products with reliable quality and excellent service.

Finally, Shandong Aike Group is a leading manufacturer dedicated to providing high-quality fans to the world. Shandong Aike Group adheres to a firm commitment to pursuing excellence and specializes in the production of innovative and reliable fans, including axial flow fans, mixed flow fans, roof fans, heaters, etc.

Welcome your inquiry to us. Or leave message to us.
